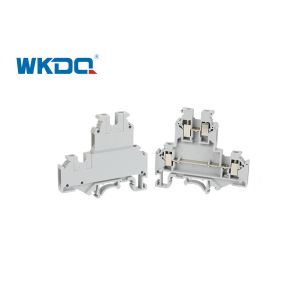

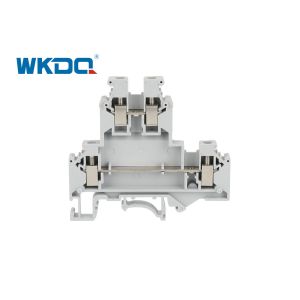

JUKKB 5 Screw Terminal Block Corrosion Proof Metal Parts

Ask Lasest Price
Brand Name :	WONKEDQ
Model Number :	JUKKB 5
Certification :	CE, RoHs, CQC,etc
Payment Terms :	T/T, Paypal, Western Union, etc
Delivery Time :	2-7 days

Add to Cart

Product Details
Company Profile

JUKKB 5 Screw Terminal Block Corrosion Proof Metal Parts

JUKKB 5 Double Layer Terminal Blocks

JUKKB 5 Screw Terminal Block Corrosion Proof Metal Parts

1. DESCRIPTION

Feed-through IEC Screw-type Double layer Terminal Blocks are ideal for applications where control signals must be distributed and collected through the same blocks. The blocks are a good solution for high-density wiring applications and are available in nine colors.The double wiring design terminal blocks available without extension of mounting rail. It can reduce the installation costs and speed the wiring.

The multiple levels screw connection terminal block has the typical features which are decisive for practical applications.

Easy to operate.

Safe and stable performance.

Corrosion-proof contact point.

Space-saving and time-saving design.

All types of accessories with high quality.

Perfectly suitable for electrical machine control systems.

Made from engineering flame resistance nylon PA66, with corrosion proof metal parts.

Combination foot are suitable for Din Rail NS 35mm.

Can use fixed bridges to build electric distribution in the terminal center , or use insertion bridges in the clamping space.

2. TECHNICAL PARAMETERS

Part No.	JUKK 5, Multi Levels Terminal Blocks
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	57/62/6.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	500V/32A
Cross section, solid/soft Cable	0.2-4 mm² / 0.2-4 mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	13.66g/pc, 50PCS/BOX, 2000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
