JEB Distribution Screw Terminal Block Accessories , Electronic Terminal Blocks Nsertion Bridge For UK DIN Rail

Ask Lasest Price
Brand Name :	WONKEDQ
Model Number :	UK Series
Certification :	CE/RoHS/CQC/ISO 9001
Payment Terms :	T/T, Paypal, Western Union, etc
Delivery Time :	2-7 days

Add to Cart

Product Details
Company Profile

JEB Distribution Screw Terminal Block Accessories , Electronic Terminal Blocks Nsertion Bridge For UK DIN Rail

JEB Terminal Insertion Bridge

JEB Distribution Screw Terminal Block Accessories , Electronic Terminal Blocks Nsertion Bridge For UK DIN Rail

1. DESCRIPTION

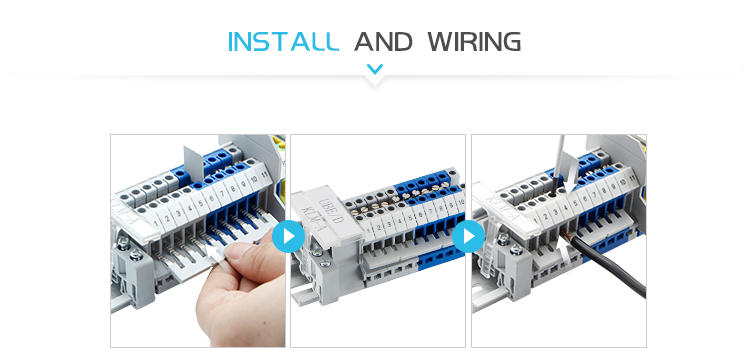

The insertion bridge can be insert at the side clamp space of UK terminal blocks, potential distribution can be contact quickly using those bridges.

Made to standard specification.

Reliable and high quality.

Steady structure.

Long durable time.

Simple and convenient operation.

Made from safe and high quality material.

Perfectly suitable for electrical machine control systems.

Available in different numbers of positions

Gray, other colors can be customized.

2.TECHNICAL PARAMETERS

Terminal Model No.	Insertion bridge Model No.	Weight per set (g)
JUK 2.5B	JEB 10-6	14.13
JUK 3N	JEB 10-5	12.54
JUK 5N	JEB 10-6	14.13
JUK 6N	JEB 10-8	22.10
JUK 10N	JEB 10-10	30.75
JUK-3TWIN	JEB 10-5	14.13
JUK-5TWIN	JEB 10-6	14.13
JUKD 4	JEB 10-6	14.13
JMBKKB 2.5	JEB 10-5	9.5
JUKKB 3	JE 10-5	12.54
JUKKB 5	JEB 10-6	14.13
JUKK3	JEB 10-5	12.54
JUKK 5	JEB 10-6	14.13
JDIKD 1.5	JEB 10-6	14.13
JUK 5-HESI	JEB 10-8	22.10
JUK 5-MTK P/P	JEB 10-6	14.13
