3 Conductor Low Voltage Screwless Terminal Block

Ask Lasest Price
Brand Name :	WONKEDQ
Model Number :	JST 2.5-TWIN
Certification :	CE/RoHS/CQC/ISO 9001
Payment Terms :	T/T, Paypal, Western Union, etc
Delivery Time :	2-7 days

Add to Cart

Product Details
Company Profile

3 Conductor Low Voltage Screwless Terminal Block

JST 2.5 TWIN Spring Cage Twin Terminal Blocks

3 Conductor JST 2.5-TWIN Din Rail Power Distribution Block Low Voltage Screwless Terminal Block

1. DESCRIPTION

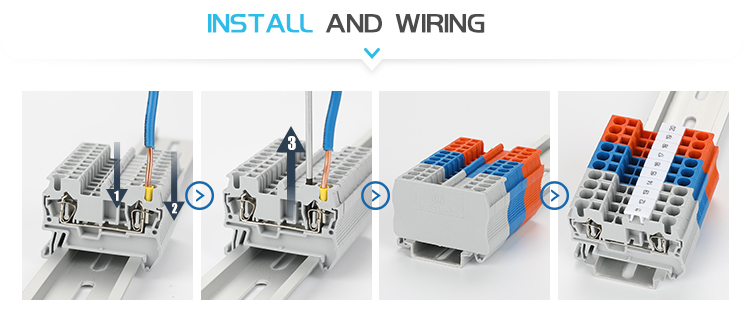

The spring-cage connection offers a tension clamp for fast wire termination and reliable secure connection.The tension clamp can easily be opened with a small screwdriver inserted next to the wire entry, then slip in the field wire and remove the screwdriver for a reliable and secure connection.

Made from Anti-flaming Nylon PA 66, Tin plated brass bar.

The stainless steel spring for high corrosion resistance.

Safe connection.

Easy to installation.

Corrosion-proof contact point.

Reliable gas-tight connection.

Made from Anti-flaming Plastic.

Stable and low contact resistances.

As well as saving space, the compact design and front connection ensure user-friendly wiring in a small amount of space.

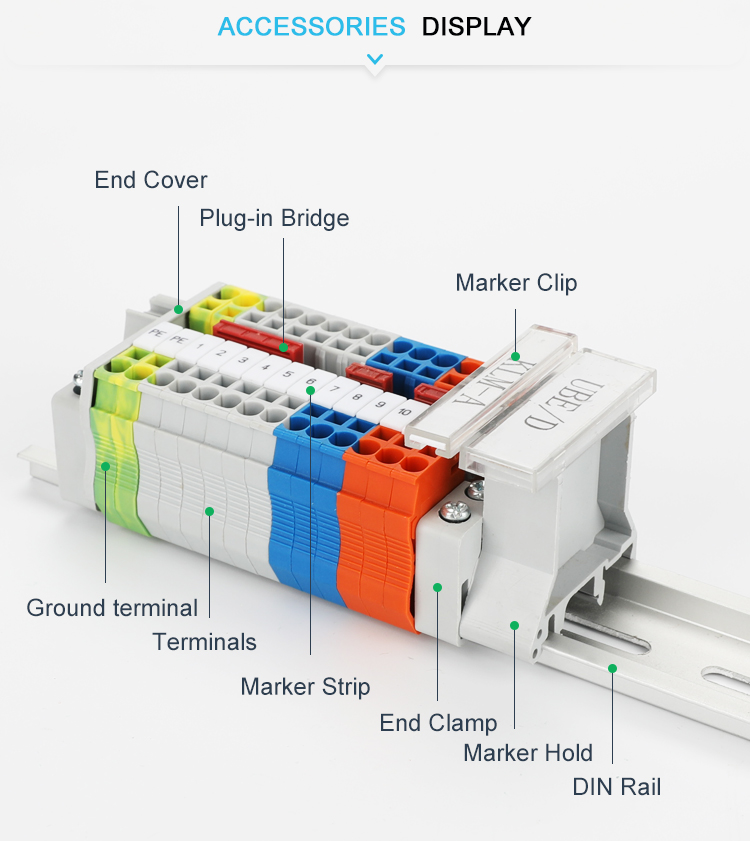

Flat marking surface allows the use of marker strips.

Certified for worldwide applicationsindustrial, commercial, solar, railways, hazardous locations, marine.

2.TECHNICAL PARAMETERS

Model Number	JST 2.5-TW
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	61/36/5.2
Connection method	Spring-cage connection
Material	Nylon PA66
Rated Voltage/Current	800V/65A
Cross section, solid/soft Cable	0.2-4mm² / 0.2-2.5 mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	7.3g/pc, 50PCS/BOX, 1500PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
