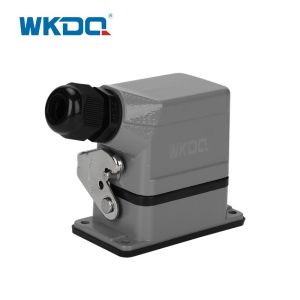

WHE06C Heavy Duty Cable Connectors

A unique design with user-friendly features compared to traditional-style Heavy Duty connectors for robotic and other industrial applications

Crescent-shaped metal hood with a rotating lock on the cable side that can be actuated with one hand. This provides space savings and easy mating and unmating compared to traditional robotic connectors that utilize locks on each side requiring a two-handed action. Additionally, Multi-module types allow gender interchanging of housings, as well as hybrid configurations using different terminal inserts.

● Cable glands with normal or multiple sealing

● The contacts are made by high quality brass, with silver or gold plated.

No.	PART NO.	Entry Side	Number of contact	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
Heavy-duty connector Voltage/Current: 500V/16A Surface: Sliver-plated Contact resistance: ≤1m ΩCross section: 1.0-2.5mm² (AWG 18-14) Tightening torque: 0.5Nm Stripping lenngth: 7mm
1	WHE06C	Side entry	6	80.0	43.0	52.2	35.0	32.0	70.0	4.3
2	WHE06D	Top entry	6	80.0	43.0	52.2	35.0	32.0	70.0	4.3
3	WHE10C	Side entry	10	93.0	43.0	65.2	35.0	32.0	83.0	4.3
4	WHE10D	Top entry	10	93.0	43.0	65.2	35.0	32.0	83.0	4.3
5	WHE16C	Side entry	16	113.0	43.0	85.5	35.0	32.0	103.0	4.3
6	WHE16D	Top entry	16	113.0	43.0	85.5	35.0	32.0	103.0	4.3
7	WHE24C	Side entry	24	140.0	43.0	112.2	35.0	32.0	130.0	4.3
8	WHE24D	Top entry	24	140.0	43.0	112.2	35.0	32.0	130.0	4.3

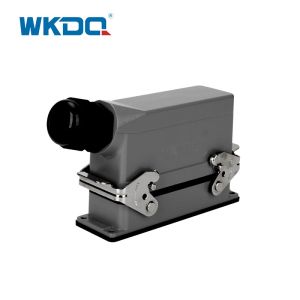

9	WHE32C	Side entry	32	113.0	80.5	86.0	73.0	60.0	103.0	4.5
10	WHE32D	Top entry	32	113.0	80.5	86.0	73.0	60.0	103.0	4.5
11	WHE48C	Side entry	48	140.0	80.5	113.0	73.0	60.0	130.0	4.5
12	WH48D	Top entry	48	140.0	80.5	113.0	73.0	60.0	130.0	4.5

Wonke Electric Co., Ltd is a professional manufacturer founded in 1999, specializing in electrical engineering with all kinds of terminal blocks, air fans filters, etc.

We have our research and development team to bring out various kinds of products and solutions to meet the customers' requirements. Our products are widely applied to electronic equipment, machine building, plants engineering, process industry, etc.

To complete internationally, your plants need to satisfy high standards of safety ,quality and performance. These targets can be achieved with our products and services.

We can help you bring new ideas and solutions for providing customers around the world, OEM is also support. This is also what we understand for services.
